New 2023 Tiffin Motorhomes Zephyr 45 FZ

Motor Home Class A - Diesel

Stock #MH23358

Spring, TX

1 of 1

MSRP: $847,360

Payments From: $5,252 /mo.

Sleeps 6
4 Slides
Bath and a Half

Outdoor Entertainment

45ft Long
JEWEL OF THE NILE

See All Specs

Specifications

Sleeps	6	Slides	4
Length	45 ft	Ext Width	8 ft 5 in
Ext Height	12 ft 11 in	Int Height	6 ft 11 in
Interior Color	JEWEL OF THE NILE	Exterior Color	COPPER CARAMEL
Hitch Weight	20000 lbs	GVWR	54000 lbs
Fresh Water Capacity	90 gals	Grey Water Capacity	70 gals
Black Water Capacity	50 gals	Tire Size	315/80R22.5
Fuel Type	Diesel	Miles	713
Engine	Cummins ISX	Chassis	PowerGlide
Horsepower	605 hp	Fuel Capacity	150 gals
Wheelbase	316 in	Available Beds	King
Torque	1950 ft-lb	Refrigerator Type	Stainless Steel Residential
Convection Cooking	Yes	Cooktop Burners	2
Number of Awnings	2	Axle Weight Front	20000 lbs
Axle Weight Rear	23000 lbs	Axle Weight Tag	14000 lbs
Water Heater Type	Continuous	AC BTU	45000 btu
Basement Storage	165 cu. ft.	TV Info	Cab TV, LR TV, BR TV, Ext. TV
Awning Info	Girard Power with Dual Pitch	Washer/Dryer Available	Yes
Gross Combined Weight	74000 lbs	Shower Type	Standard
Electrical Service	50 amp	VIN	5VBZA89A6PA123358

Description

Tiffin Motorhomes Zephyr Class A diesel motorhome 45 PZ highlights:

Slide Out King Bed
Drawer-Type Dishwasher
Four Slides
Dinette with Computer Workstation
Double Pull-Out Pantry
Four Flat-Screen TVs
Residential Refrigerator

Wow! Take a look at this roomy coach with a bath and a half, four slides, and sleeping space for six. The master bedroom includes a slide out king bed with dual nightstands, a lift TV with drawers on either side, plus a bedroom fireplace for all-around luxury. You can freshen up each morning in the full rear bath that features a walk-in closet with tons of storage space and a stacked washer and dryer. And did we mention there are dual bath sinks so you can both brush your teeth at the same time. You're going to love cooking breakfast in this Zephyr kitchen that includes a stainless steel convection microwave, a Wolf cooktop, a Keurig coffee center, and many more comforts. The main living area will be a favorite hangout spot with its dual Ultraleather sofas, dual opposing slides for added space, plus a flat-screen lift TV for movie night. This model also includes a pass-through full basement storage, Girard power awnings, plus an exterior TV with a sound bar and a power TV door. You can't beat this coach if you tried!

Luxury comes easy with the Zephyr Class A diesel coach by Tiffin Motorhomes. You'll be able to feel the power behind the Cummins X15 605 HP engine, and the PowerGlide chassis will provide a smooth drive wherever you decide to roam. The blind spot monitoring, adaptive cruise control, and collision mitigation that come standard on this coach will make the the journey that much easier, plus there is a Combination Valid Aire and HWH hydraulic leveling when it comes time to set up for the night. Some of the interior luxuries you are sure to love are the Quartz countertops, the hardwood cabinetry, the panoramic window in the galley, and much more. The Zephyr is an all-electric coach for your convenience, and you'll appreciate the AquaHot hydronic heating system with continuous hot water and the Extraordinaire A/C system with three 15K roof A/Cs to keep you comfortable at every turn!

Features

Standard Features

General Construction

Roof
- One-Piece, Moisture-Resistant Molded Fiberglass Roof Cap Provides Insulation and Strength and Prevents Water Intrusion
- 5 1/2" Formed Insulation
- Extraordinaire Cooling System Ducted Supply Air and Return Air
- Durable, Tubular Aluminum Roof Skeleton
Sidewall
- Gel-Coat Fiberglass Outside Wall Panel
- High-Performance Thermal Insulation
- Durable, yet Lightweight, Tubular Aluminum Wall Skeleton
- Decorative Inside Wall Panel
Floor
- Luxurious Tile Floor (excludes slide outs)
- Engineered Wood Sub-Flooring
- High-Performance Thermal Insulation
- Durable, Tubular Floor Skeleton
- Woven Moisture Barrier Material

Chassis Specifications

PowerGlide® Chassis
Independent Front Suspension
Allison 4000 MH Transmission
Six Aluminum Wheels
Two-stage Compression Engine Brake
Tru-Track Steering Tag Axle
Combination Valid Air Leveling System with HWH Hydraulic Leveling Jacks
Electronic Stability Control
Automatic Traction Control
Collision Mitigation with Forward Warning and Active Braking Cummins X15 605 HP / 1,950 lb. Torque
GVWR: 54,000 lb.
GAWR – Front: 20,000 lb.
GAWR – Rear: 23,000 lb.
GVWR Tag Axle: 14,000 lb.
GCWR: 74,000 lb.
Alternator Amps: 280
DEF Tank* (gallons): 15
Wheel Base: 316"
Front Tire Size: 365/70R 22.5 XZA
Rear Tire Size: 315/80R22.5
Fuel Tank (gallons): 150

Chassis Features

Steel Cockpit Overhead Support Frame
Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
One-piece Molded Gel-coat Fiberglass Front & Rear Caps with Integrated Air Intake
Insulated Roof Duct Laminated into Roof Construction
Steel Basement Construction

Plumbing and Electrical

All-electric Coach
AquaHot Hydronic Heating System with Continuous Hot Water
Spyder Multiplex Coach Control System with Auto Generator Start and App Compatibility
12.5 kw Onan® Generator with Power Slide
SeeLeveL Tank Monitor at Dump Station
Six Battery - 900 Amp-hrs Extended Cycle Battery Bank
Extraordinaire AC System with Three 15 K Roof ACs with Heat Pumps
Solar Panel Prep
In-motion Satellite System*
Black Tank Flush System
Water Filter
SeeLeveL Tank Monitor at Dump Station
Fresh-water Hose with Power Retract Reel
50-amp Shoreline with Power Retract Reel
Energy Management System
Outside System
2800 Watt Pure Sine Wave Inverter
Pre-wired for Winegard TRAV'LER Satellite
AquaView Showermiser
TRC Hi/Lo Voltage Protection

Plumbing And Electrical Options

Lithium Batteries
Wi-Fi Ranger
Three Solar Panels
Six Solar Panels

General Exterior

Keyless Entry System (Includes Exterior Compartment Doors)
Deadbolt Entrance Door Lock
Aluminum Side-swinging Baggage Doors
Pass-through Full Basement Storage
120 V and 12 V Outlets Inside Storage Compartment
Power Slide-out Storage Tray (Slides Out Both Sides)
Girard Power Window Awnings
2 Roof-mounted Girard Power Awnings with Dual Pitch Feature
Easy Hook-up Water Compartment with Built-in Hose Exits
One-piece Panoramic Windshield
Air Horn
LED Headlights
Fog Lights
Recessed LED Docking Lights
Porch Light
Lighted Exterior Grab Handle
Basement and Outside Compartment Lights
Custom Mud Flap
Exterior TV (Includes Sound Bar) with Power TV Door
Front Cap Protective Coating
Flush Mounted and Painted-fram Dual Pane Windows
Heated Side-view Mirrors with Integrated Cameras Activated by Turn Signal
Under Coach Ground Effect Lighting
Under Slide-out Ground Effect Lighting
Basement Freezer

Exterior Options

Second Electric Slide Out Tray
Outdoor Kitchen (Requires One Slide Out Tray)

Interior

Spyder Multiplex Coach Control Panels Featuring a 10" Main Monitor and Additional Conveniently Located Control Panels
12 V Roof Fans
Recessed Doors and Drawers
Soft-closing Ball Bearing Drawer Slides (Select Areas)
Gold Heat Heated Tile Floor
Padded Soft Touch Vinyl Ceiling
Power Solar/Privacy Shades with Wall Mounted Controls (Day and Night)
Porcelain Tile Flooring Throughout Coach (Excludes Slide-outs)
Integrated Speakers
LED Lights
Ceiling Flush Mounted Multi-lighting System
12 V Breaker Panel
Smoke Alarm
Carbon Monoxide Detector
GFI Outlets at Galley and Lavatories
Interior Grab Handle at Entry Door
Centralized Entertainment System with Blu-Ray Player and Satellite Receiver*
Central Vacuum Cleaner System with VacPan
Stacked Washer/Dryer
Vicinity White Floor Tile

Interior Options

Glazed Canyon Cherry, Glazed Cherry, Glazed Honey Natural Cherry, Pure Linen, or Shadow Solid Cabinet Doors and Drawer Fronts
Luster Sheen Cabinet Finish
Shore Club II with Pro Parfait Ultraleather
Night Fort II with Tottori Udon Ultraleather
Ambassador Global Grey Floor Tile

Driver's Compartment

Advanced Monitor System with JBL Sounds, One 10" Touch Screen Monitor, One 10" Passive Camera Monitor, and One 7" Touchscreen Passenger Monitor
Navigation System*
Satellite Radio (requires subscription)
360° View Camera System
VIP Smart Wheel with Controls for Cruise and Windshield Wipers, High Beam/Low Beam, Stereo, and Radio
Digital Dashboard Cluster with Integrated Leveling Controls
Adjustable Accelerator and Brake Pedals
Automatic Headlights
Contemporary Wrap-around Dash with French Stitched Accent
Built-in Storage Drawers in Dash
Back-lit Dash Switches
Built-in Driver and Passenger Consoles with Control Switches
Ultraleather Six-way Power Adjustable, Heated and Cooled Driver/Passenger Seats with Lumbar Support and Integrated Seat Belts
Passenger Power Footrest
Tile Step Well with Recessed Lighting and Built-in Drawer
Electric Step Well Cover
Overhead RV
USB Dash Receptacle
Driver and Passenger Map Lights
Driver Side Insulated Power Window
Solid Non-opening Window beside Passenger Seat
Power Solar/Privacy Windshield Shade
Driver/Passenger Side Power Solar/Privacy Shades
Dual 12 V Outlets in Dash Area (Driver)
12 V Battery Power Disconnect
Fire Extinguisher
Blind Spot Monitoring

Driver's Compartment Options

Mobile Advanced Driver Assistance

Living Area/Dinette

Dinette with Computer Work Station on Passenger Side
Contemporary Ceiling
Sound Bar Sound System
Decorative Wall and Dinette Lighting Package
Ultraleather DE Sofa Bed with Lift TV on Passenger Side
Ultraleather Air Coil Hide-a-Bed Sofa on Driver Side

Living Area/Dinette Options

Ultraleather U-shaped Booth Dinette on Passenger Side
Ultraleather Air Coil Sofa Bed with Lift TV on Passenger Side
Theater Seating on Driver Side
(2) Luxury Recliners w/ Fireplace on Driver Side
Recliner with Lift TV/Fireplace on Passenger Side

Kitchen

Quartz Countertops
Residential Stainless Steel Refrigerator w/ Wood Panels
Keurig Coffee Center
Stainless Steel Convection Microwave with Exterior Venting
Power Solar/Privacy Shades
Built-in Soap Dispenser
Drawer-type Dishwasher
Wolf Cooktop
Under Sink Pull-out Utility Box
Galley Panoramic Window
Insinkerator Instant Hot Water Faucet

Kitchen Options

Wolf Coffee Center
Beverage Center

Bedroom

Quartz Countertops
Bedroom Lift TV with Fireplace
Memory Foam King Mattress (72" x 80")
Under Bed Storage
Ceiling Fan
Vanity with Built-in Drawers
Decorative Handcrafted Wood Ceiling Ring
Security Safe

Bedroom Options

Power Smart King Bed Mattress (72” x 80”)
Rear Egress Door (includes Overhead Cabinet)
Delete Bed Overhead Cabinet (includes Window)

Bath

Two Solid Porcelain Lavatory Sinks
Medicine Cabinets with Tri-view Vanity Mirror
Elongated Ceramic Toilet with Electric Flush
Solid Surface Shower Walls with Inlaid Tile and Residential Glass Door
Skylight in Shower and LED Light
Hand Held Shower with On/Off Switch
Towel Holders and Lavatory Accessories Package
Stacked Washer/Dryer in Rear Wardrobe
Laundry Center with Storage and Drawers in Rear Wardrobe
Solid Surface Countertops in Rear Wardrobe

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change!

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
Nice rv

Betheany
Excellent Customer Service
We were coming up on the first anniversary of owning our camper-trailer and wanted to take it in to get service on a laundry list of small things that would…

Betty
Excellent Customer Service
We have been very pleased with the DeMontrond RV service department in Conroe.

Keith

We are here to help, call us at
346-471-5578 or Contact Us

We are here to help!

346-471-5578
Contact Us
Contact Sales

We strive to ensure all pricing and information contained in this website is accurate. Despite our efforts, occasionally errors resulting from typos, inaccurate detail information or technical mistakes may occur. We are not responsible for any such errors and reserve the right to correct them at any time. Please note that 360 virtual tours are for reference of the corresponding floorplan. Actual features, colors and finishes may vary to the unit in stock.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Tiffin Motorhomes Zephyr 45 FZ

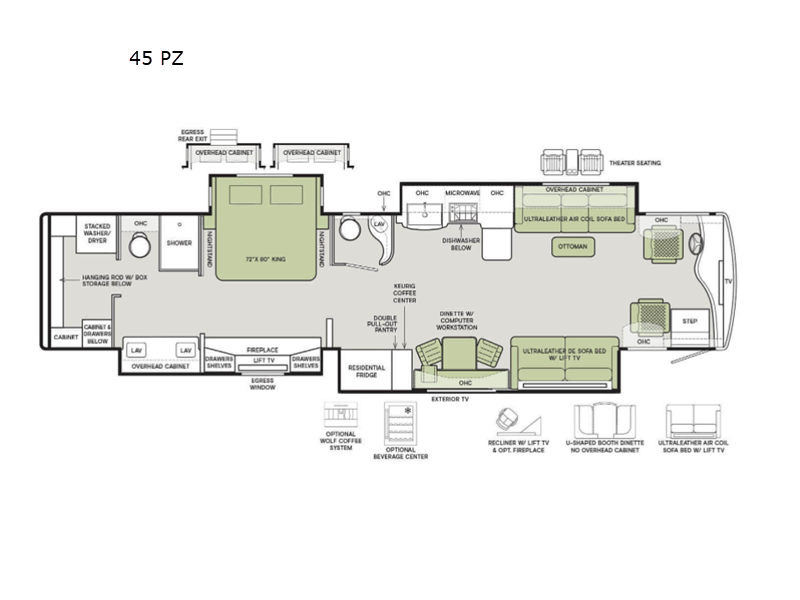

45 FZ Floorplan
